Bathroom space planning guide for code-aware, functional layouts

Why bathroom space planning should start before finishes

Bathroom space planning is the process of arranging fixtures, circulation, storage, doors, lighting and building systems so the room functions safely before tile, faucets or vanity colors are selected. A good plan is not simply the smallest drawing that fits a toilet, sink and shower. It balances code minimums, daily comfort, cleaning access, moisture control and future adaptability. In the United States, model codes such as the International Residential Code and International Plumbing Code provide minimum clearances. Professional planning references, including NKBA guidelines, often encourage more generous space where the floor plan allows. Local requirements still control final approval, so every project should be checked with the local authority, designer or contractor before construction.

The practical goal is straightforward: protect clear floor space first, then place storage and furniture-like elements around it. A vanity that looks balanced in a showroom can make a toilet difficult to use. A shower door can block the best towel location. A deep cabinet can make a narrow room feel tighter than it is. Good planning finds these conflicts early, when they are still inexpensive to correct.

For more architecture and furniture planning topics, visit Huangjinhe.com.

Separate minimum code space from comfortable space

A common planning error is treating minimum dimensions as design targets. Minimum clearances are the floor, not the comfort standard. The 2024 International Plumbing Code states that a water closet, urinal, lavatory or bidet should not be set closer than 15 in. from its centerline to a side wall, partition, vanity or other obstruction. It also requires at least 21 in. of clearance in front of a water closet, urinal, lavatory or bidet. The 2024 International Residential Code includes similar bathroom fixture clearance concepts for one- and two-family dwellings. These dimensions help determine whether a plan can pass a basic review, but they do not guarantee that the room will feel comfortable.

In practical design, a few extra inches often matter more than expensive finishes. More front clearance at a toilet or vanity can make the room easier to share, clean and navigate. A wider toilet zone can keep elbows from hitting a vanity. A deeper landing area outside a shower can make stepping out, drying and dressing safer.

Planning item	Common minimum reference	More comfortable planning target	Why it matters
Toilet side clearance	15 in. from toilet centerline to side obstruction	18 in. or more when space allows	Improves shoulder and elbow room
Toilet front clearance	21 in. minimum in many model-code conditions	30 in. or more when possible	Improves sitting, standing and cleaning access
Lavatory front clearance	21 in. minimum in many model-code conditions	30 in. or more for daily comfort	Allows bending, grooming and cabinet access
Shower compartment	30 in. by 30 in. minimum interior in common residential code references	36 in. by 36 in. or larger if the room permits	Improves movement and reduces a cramped feel
Accessible turning space	ADA references include a 60 in. circular turning space or compliant T-shaped space in required accessible rooms	Use as a planning benchmark when future mobility is a priority	Supports wheelchair or mobility-aid use

Use these figures as planning guidance, not as a substitute for local code review. Local amendments, adopted code editions, multi-family requirements and accessibility rules can change the final answer.

Plan around fixture zones, not just fixture sizes

Every bathroom fixture needs more than its physical footprint. The toilet needs side and front clearance. The vanity needs standing room, drawer swing, plumbing space and mirror alignment. The shower needs an entry zone, door swing or panel clearance, water containment and towel access. A bathtub needs approach space and a safe wet-to-dry transition. When a drawing shows only fixture outlines, the plan may look workable while the finished room feels awkward.

Toilet placement

The toilet is often the least flexible fixture because the waste line can be expensive to move. Place it where the required side and front clearances remain open after wall finishes, tile thickness, baseboards, shower curbs and vanity panels are included. In tight layouts, the obstruction is not always a wall. A glass shower panel, cabinet side, radiator, towel warmer or toilet paper holder can reduce usable clearance.

In a long, narrow bathroom, placing the toilet on the same wall as the vanity can preserve a cleaner circulation path. If privacy is important in a primary bath, a toilet compartment may work, but only with adequate width, depth, ventilation and door clearance. A compartment that is enclosed but too tight can make the overall bathroom less comfortable.

Vanity and sink planning

The vanity is where bathroom planning most clearly overlaps with furniture design. A freestanding or furniture-style vanity can create visual lightness, while a full-depth built-in vanity may add storage but reduce circulation. In small bathrooms, a wall-hung vanity or open-base vanity can expose more floor and make the room feel larger. Open designs, however, need careful storage planning because visible clutter quickly weakens that benefit.

For shared bathrooms, two sinks are not always the best use of space. A single larger sink with more counter space and better drawers may function better than two small basins squeezed into a short vanity. If two lavatories are used, centerline spacing and usable counter zones should be checked early, not after countertop fabrication.

Shower and tub zones

Showers require both interior space and entry space. A code-minimum shower can be legal but uncomfortable for many adults, especially if a door swings inward or the controls are hard to reach before stepping into the water. Sliding doors, fixed glass panels and curbless entries can solve some circulation problems, but they also require careful waterproofing and drainage design.

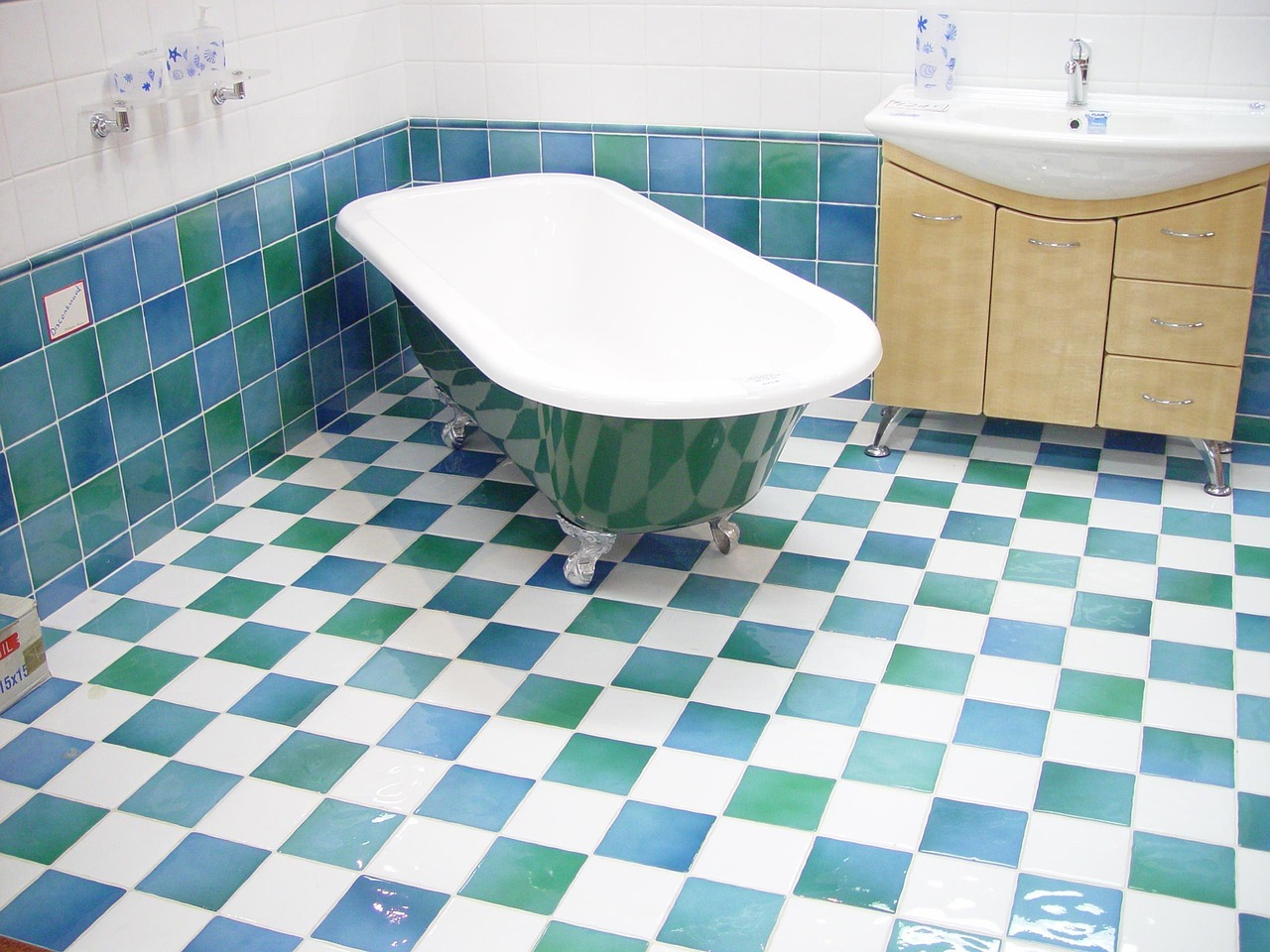

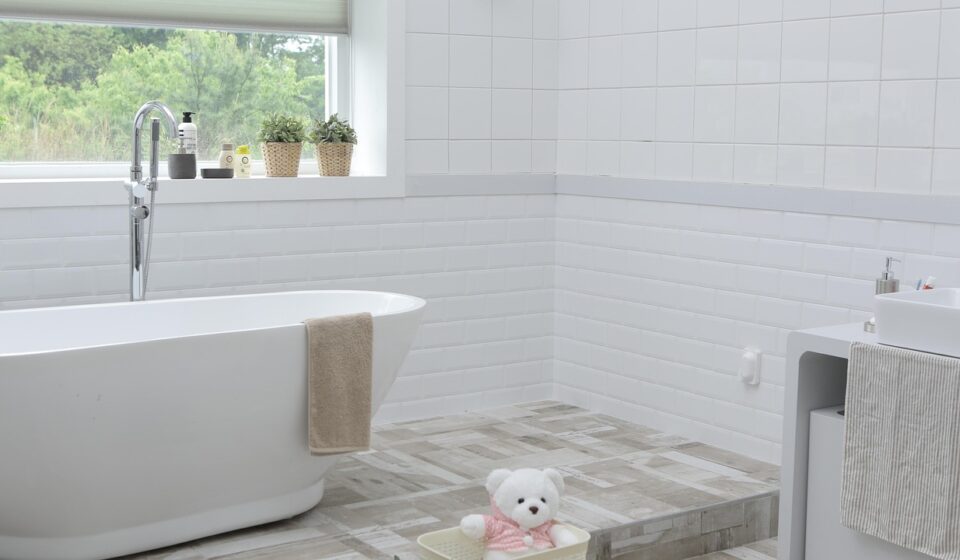

Bathtubs deserve the same analysis. A tub that is rarely used may consume the best floor area in a small family bathroom. In a resale-sensitive project, keeping a tub somewhere in the home may be useful, but that does not mean every bathroom needs one. The planning question is not whether a tub is attractive; it is whether the tub supports the household’s actual bathing, child-care, pet-care or accessibility needs.

Use the door, circulation path and wet zone as the layout backbone

The door is one of the strongest space-planning decisions in a bathroom. A hinged door that swings into the room can collide with a vanity drawer, block a towel hook or reduce usable standing area. An out-swinging door can improve interior clearance in some small bathrooms, but it must work safely with the hall or adjacent room. Pocket doors and surface-mounted sliding doors can save swing space, yet they require wall planning, privacy hardware and acoustic consideration.

After the door is set, identify the main circulation path. In a compact three-fixture bathroom, the path usually runs from the entry to the vanity, then to the toilet and shower or tub. In a larger primary bath, circulation may connect separate vanity, bathing, dressing and toilet zones. Avoid layouts where a user must step into a wet shower exit zone to reach storage, or where an open drawer blocks another person from entering.

The wet zone should also guide material and storage decisions. Towels need to be reachable from the shower or tub without crossing the room wet. Robe hooks should not be hidden behind an open door. Bath mats need a landing area that does not interfere with toilet clearance. If a shower has a fixed glass panel, confirm where the user can stand to turn on the water without being sprayed by cold water.

Storage should support behavior, not just fill empty walls

Bathroom storage fails when it is treated as leftover space. Start by listing what the room must hold: daily toiletries, backup paper goods, towels, cleaning products, grooming tools, medicine, laundry and children’s bath items. Then decide which items need closed storage, which can be displayed and which should be stored outside the bathroom.

Vanity drawers are often more efficient than deep cabinet doors because small items are easier to see and reach. Recessed medicine cabinets can add storage without projecting into the room, but wall framing and plumbing must be checked first. Tall cabinets are useful in larger bathrooms, yet they can make a narrow room feel like a corridor if placed near the entry.

• Use shallow storage near circulation paths. A 6 to 8 in. deep cabinet can hold toiletries without crowding the room.
• Keep towel storage near the bathing zone. Storage across the room encourages wet floors.
• Avoid placing open shelves directly beside the toilet. Hygiene, splashing and visual clutter can become problems.
• Reserve under-sink space for plumbing reality. Drawers and organizers must fit around traps, supplies and shutoff valves.
• Plan cleaning access. Leave enough room around the toilet base, vanity sides and shower glass for maintenance.

For architecture and furniture websites, this is where built-in cabinetry, vanity proportions and room planning should be discussed together. A bathroom is a small room, but its cabinets function like furniture under moisture, plumbing and clearance constraints.

Coordinate ventilation, lighting and water efficiency early

Space planning is not limited to what appears on the floor plan. Mechanical ventilation, lighting and plumbing performance shape whether the bathroom remains comfortable after installation. The 2024 International Residential Code lists local bathroom and toilet room exhaust capacity at 50 cfm for intermittent operation or 20 cfm for continuous operation. It also requires bathroom exhaust air to discharge outdoors rather than into an attic, crawl space or interior building area. These requirements affect fan location, duct routing, ceiling layout and noise control.

Lighting should be planned in layers. Overhead lighting alone can cast shadows on the face, while side lighting or well-positioned vertical lighting near the mirror improves grooming. In a shower, lighting must be selected and located for wet or damp conditions as required by electrical rules and product listings. Switches, dimmers, sensors and night lighting should be considered before walls are closed.

Water efficiency also affects fixture selection. The U.S. Environmental Protection Agency’s WaterSense program identifies labeled bathroom faucets, toilets and showerheads that meet water-efficiency and performance criteria. EPA materials state that WaterSense bathroom sink faucets and accessories use a maximum of 1.5 gallons per minute, WaterSense labeled toilets use 1.28 gallons per flush or less, and standard showerheads use 2.5 gallons per minute while WaterSense showerheads are specified at lower flow rates. These numbers matter during planning because a shower system with multiple outlets, a long pipe run or a large tub may require closer coordination with the water heater, supply piping and local plumbing rules.

Plan for accessibility and aging without making the room institutional

Accessibility should not be treated as a separate design style. It is a planning discipline that can make a bathroom safer and more adaptable. The ADA Standards for Accessible Design apply to covered public and commercial facilities, not most private single-family bathrooms, but the dimensional logic is useful when a homeowner wants long-term flexibility. ADA guidance includes turning space concepts such as a 60 in. diameter circle or a compliant T-shaped turning space, and accessible toilet rooms include larger water closet clearance requirements than typical residential minimums.

Not every bathroom can become fully wheelchair accessible without moving walls. Still, many projects can include adaptable features:

• Blocking in walls where future grab bars may be installed.
• A wider doorway when framing changes are already planned.
• A curbless or low-threshold shower where structure and waterproofing allow it.
• Lever handles instead of small knobs.
• Slip-resistant flooring appropriate for wet areas.
• Storage and controls placed within comfortable reach ranges.

The key is to distinguish universal design from afterthoughts. A stylish grab bar, a bench integrated into a shower, a handheld showerhead and good lighting can look intentional. They also reduce the chance that the bathroom will need disruptive remodeling when household needs change.

A practical planning sequence for small and shared bathrooms

For a remodel, begin by measuring the room with finished wall surfaces in mind, not just rough framing. Note window locations, ceiling slopes, joists, plumbing walls, door swings and existing drain positions. Then test layout options in order of constraint: toilet location, bathing fixture, vanity, door, storage and accessories. This sequence prevents the common problem of selecting the vanity first and forcing everything else around it.

1. Confirm the room type. Powder room, hall bath, primary bath and accessible bath have different priorities.
2. Mark required clearances. Draw toilet, lavatory, shower and tub clear floor areas before adding cabinets.
3. Choose the wet wall strategy. Keeping plumbing grouped can reduce complexity, but it should not override usability.
4. Check door and drawer conflicts. Open every door, drawer, shower panel and cabinet in the plan.
5. Locate towel, paper and product storage. Accessories are small, but poor placement can ruin a tight layout.
6. Coordinate ventilation and lighting. Fan ducts, recessed lights, mirrors and ceiling framing need early decisions.
7. Review with local code professionals. Model-code guidance is helpful, but the adopted local code and inspector interpretation govern the project.

In a small bathroom, the best layout is often the one with the fewest conflicts, not the most features. In a shared bathroom, plan for simultaneous use: one person at the sink, another entering, and another reaching towels or storage. In a primary bathroom, comfort may come from clear zones and quiet circulation rather than from adding every possible fixture.

Frequently asked questions

What is the first rule of bathroom space planning?

Start with clearances and circulation before selecting fixtures. The toilet, vanity, shower, tub and door all need operating space. If those zones overlap poorly, the room will feel cramped even if every fixture technically fits.

Is 21 in. enough space in front of a toilet?

It is a common minimum clearance in model-code references, but it is tight for many users. If the floor plan allows, planning closer to 30 in. in front of the toilet usually feels more comfortable and makes cleaning easier.

Can a small bathroom still have good storage?

Yes, but storage should be shallow, specific and close to the point of use. Drawers, recessed cabinets, mirror cabinets and vertical niches often work better than bulky cabinets that reduce movement space.

Does every bathroom need to meet ADA standards?

No. ADA requirements apply to covered public and commercial settings, while most private homes are governed by residential codes and local rules. However, ADA and accessibility principles can still inform safer, more adaptable home bathrooms.

Should the toilet, sink and shower stay on one wall?

Keeping fixtures on one plumbing wall can simplify construction, especially in remodels, but it is not always the best layout. Usability, clearances, door conflicts and wet-zone safety should be weighed before choosing the cheapest plumbing route.
